Full Span Girder for Maharashtra section of Bullet Train Project

(Metro Rail News): Mumbai-Ahmedabad Bullet Train Project (MAHSR) advanced as National High-Speed Rail Corporation Ltd (NHSRCL) cast the first full-span Pre-Stressed Concrete (PSC) Box Girder for the Maharashtra section of the alignment.

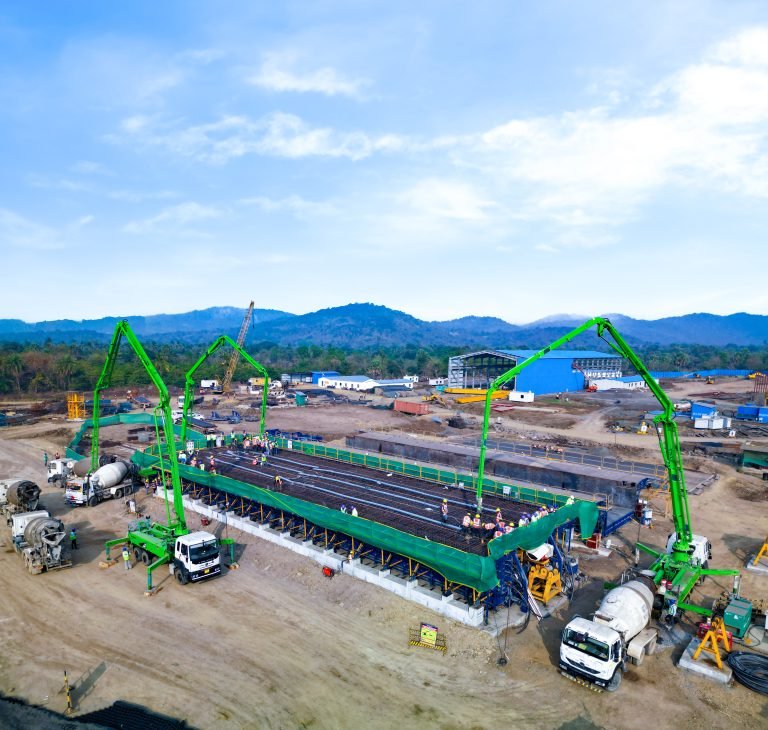

First 40 m full span girder successfully cast in Maharashtra for Mumbai Ahmedabad Bullet Train Project 3
Image Credit: NHSRCL

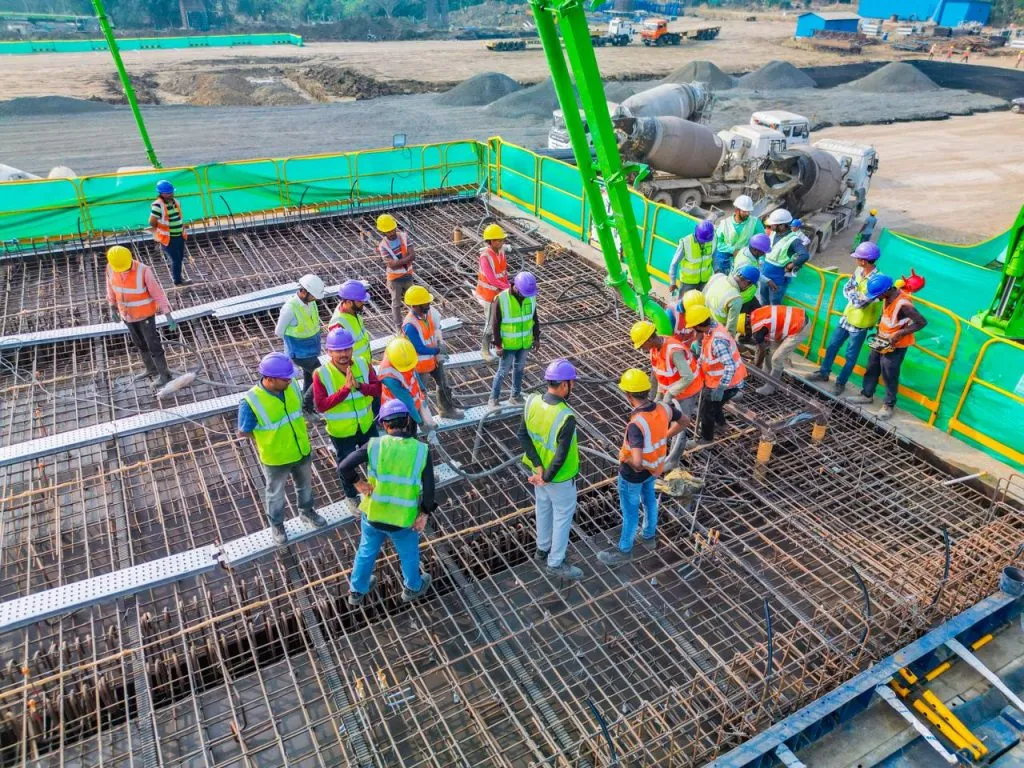

First 40 m full span girder successfully cast in Maharashtra for Mumbai Ahmedabad Bullet Train Project 4
Image Credit: NHSRCL

Salient Features of PSC Box Girder

ParameterDetails
Span of PSC Box Girder (Maharashtra section)40 m
Weight of Girder970 MT (Heaviest girder in India’s construction industry)
Concrete Volume390 cum
Steel Usage42 MT
Casting MethodCast as a single piece without any construction joint

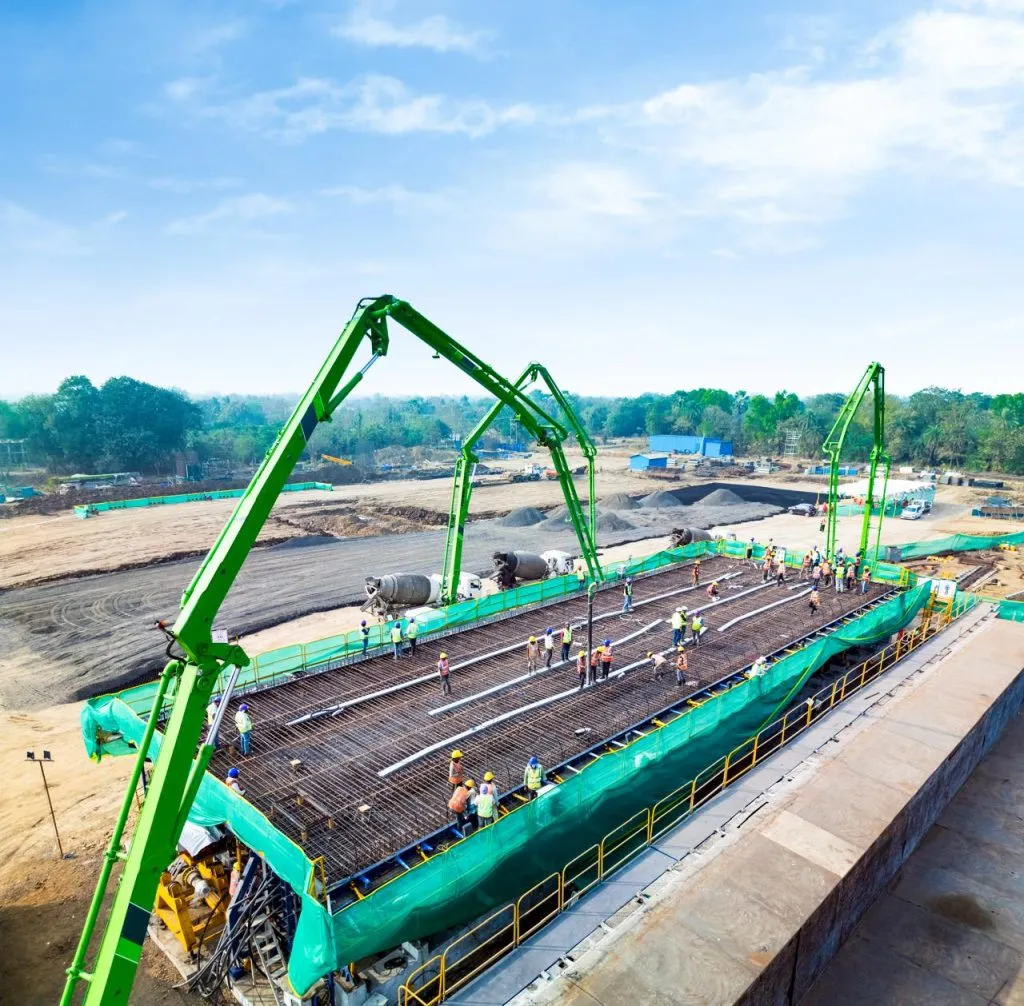

First 40 m full span girder successfully cast in Maharashtra for Mumbai Ahmedabad Bullet Train Project 2
Image Credit: NHSRCL

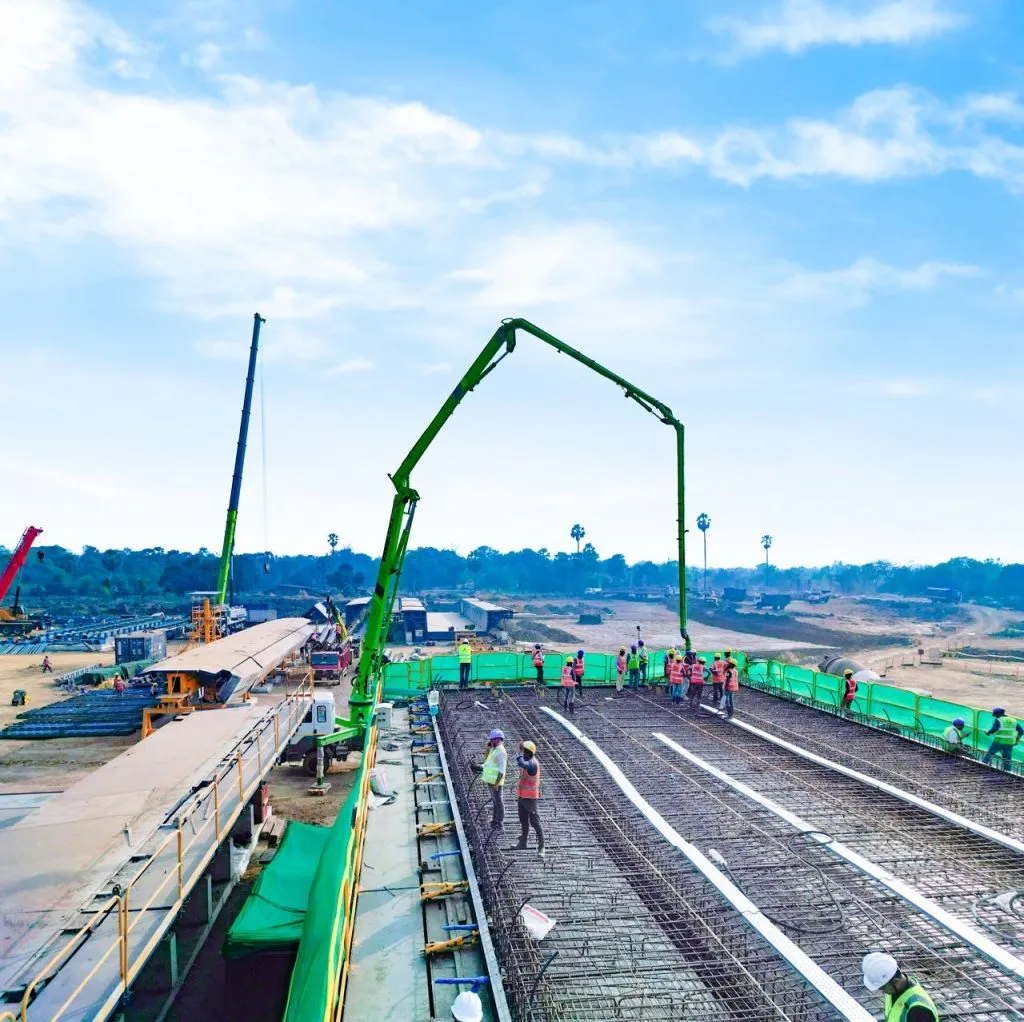

First 40 m full span girder successfully cast in Maharashtra for Mumbai Ahmedabad Bullet Train Project
Image Credit: NHSRCL

Full-span pre-cast box girders will be launched using heavy machinery, including:

  • Straddle Carrier
  • Bridge Launching Gantry
  • Girder Transporter
  • Launching Gantry

 About Casting Yards developed for the MAHSR Project

To ensure the uninterrupted supply of girders for the viaduct, 13 casting yards have been developed along the alignment in Maharashtra between Shilphata and the Gujarat-Maharashtra border.

Out of 13 casting yards, 3 casting yards have become operational.

  • The 2 casting yards have been developed for segment casting and the other one for full-span box girders.

Updates on the Gujarat section

The Gujarat section’s viaduct construction has been completed 255 km so far. The viaduct has been constructed using the same technology since April 2021.

Maharashtra Section Details

ParameterDetails
Total Length of Elevated Section135 km
Major River Bridges4 (Ulhas, Vaitarna, Jagani, Kharbao)
Special Bridges/Crossings11 (over National Highways, DFCC, and Indian Railway lines)
Bullet Train Stations3 (Thane, Virar, Boisar)
Mountain Tunnels7

Further Information

The construction of the substructure and superstructure, including piles, pile caps, piers, and pier caps, is advancing rapidly to facilitate the construction of the viaduct. Simultaneously, dedicated casting yards have been established along the alignment to produce full-span and segmental girders.
